Introduction

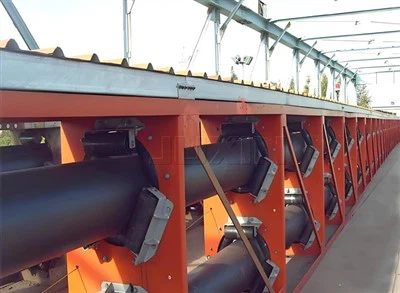

Juxin Tube Belt Conveyor is a high-tech enclosed conveyance system that is used for bulk materials. This new tube conveyor system replaces a conventional flat belt with a closed conveying tube system, which firmly encloses the material from the external environment and prevents spillage and dust.
Application
Mining Industry
The durable tube belt conveyor is the ideal belt to transport miners and coal through the extensive range and intricate landscapes, exhibiting the stability of this superior tube conveyor belt.
Power Plants
A dependable pipe conveyor system delivers coal and ash, and delivers clean and efficiently using its closed conveyor tube, which reduces environmental impact.
Ports and Terminals
The tube belt conveyor is a high-capacity conveyor tube whereby ships are loaded and unloaded at a rapid speed with materials such as grain, ore, and fertilizers.
Construction Sector
With cement, sand, and gravel being transported through its closed conveyor tube, this is an efficient tube conveyor system that means less dust pollution at construction sites.
Chemical Industry
The sealed tunnel design of the tube belt conveyor is ideal for the transportation of sensitive or dangerous chemical powders and grains through the sophisticated tube conveyor belt.
Design
Green OperationThe closed conveyor tube eliminates spillage and dust that can affect the environment. To demonstrate the environmental advantages of the tube conveyor system, the Juxin Tube Belt Conveyor is a green option. Flexible RoutingThe tube conveyor channel has the capacity to pass through steep horizontal and vertical curves using its flexible route conveyor tube design that minimizes numerous transfer points in the tube belt conveyor. Excellent Material ProtectionThe materials are protected against rain, wind, and contamination in the sealed design of the conveyor tube in the Tube Belt Conveyor; this maintains the quality of materials throughout the tube conveyor system itself. High Efficiency, Low ConsumptionJuxin Tube Belt Conveyor has continuous high capacity transportation due to its optimized conveyor tube that consumes less energy than other conveying systems. Space-Saving DesignBecause the Juxin tube conveyor system has a small structure, the tube belt conveyor takes a small footprint to install, which is highly valued, and also does not lose the efficiency of the conveyor tube. |
Advantage
Conveyor Belt
A belt specially designed to be flat at loading and discharge points, but that builds the closed conveyor tube in the transport portion of the tube belt conveyor.
Drive Unit
This unit is the backbone of all the power of the tube belt conveyor, and simple but steady operation of the tube conveyor system under all sorts of loads is achieved.
Idler Rollers
These rollers can be described as unique and are arranged in the form of hexagons that guide and hold the belt together, maintaining the constant shape of the conveyor tube in the tube conveyor system.
Tensioning Device
It ensures optimal tension on the belt of the tube conveyor system, avoids slipping, and achieves efficiency at its highest in the tube belt conveyor.
Loading and Discharge Chutes
These are devotedly designed funnels to feed material into the conveyor tube in an orderly way and discharge it at the right place at the destination in the tube belt conveyor.
Frame and Supports
This is a strong steel frame that supports the whole tube belt conveyor and maintains a stable base for the conveyor tube path and the components in the tube conveyor system.
Production
Intelligent Production Workshop
Hebei, May 1st , 2023, JUXIN is thrilled to announce the triumphant completion and utilization of its state-of-the-art 6,000 square meter intelligent production workshop.
Intelligent Idler Production Line
Hebei, June 1st, 2023,JUXIN announces the successful implementation of its state-of-the-art Intelligent Idler Production Line.
Certificate
Hot Tags: tube belt conveyor, China tube belt conveyor manufacturers, suppliers, factory, spillage conveyor, Heavy Industrial Pipe Belt Conveyor, tube conveyor system, Mining Tubular Pipe Belt Conveyor, Heavy Loading Pipe Belt Conveyor, conveyor belt for waste segregation
|
Tube Diameter (dp/mm) |
BW (b/mm) |
Tubular Belt Conveyor Belt Speed (m/s) Delivery Capacity |
|||||||||
|
0.8 |
1.0 |
1.25 |
1.6 |
2.0 |
2.5 |
3.15 |
4.0 |
4.5 |
5.0 |
||
|
100 |
430 |
17.0 |
21.2 |
26.5 |
33.9 |
- |
- |
- |
- |
- |
- |
|
150 |
600 |
38.0 |
47.5 |
59.4 |
76.0 |
95.0 |
118.8 |
- |
- |
- |
- |
|
200 |
750 |
66.5 |
83.1 |
103.9 |
133.0 |
166.2 |
207.8 |
- |
- |
- |
- |
|
250 |
1000 |
117.9 |
147.4 |
184.3 |
235.8 |
294.8 |
368.5 |
464.3 |
- |
- |
- |
|
300 |
1100 |
141.1 |
176.4 |
211.7 |
282.2 |
352.8 |
441.0 |
555.7 |
705.6 |
- |
- |
|
350 |
1300 |
- |
237.6 |
297.0 |
380.2 |
497.2 |
594.0 |
748.4 |
950.4 |
1069.2 |
1188.0 |
|
400 |
1600 |
- |
388.8 |
486.0 |
622.1 |
777.6 |
972.0 |
1224.7 |
1555.2 |
1749.6 |
1944.0 |
|
500 |
1900 |
- |
558.1 |
697.6 |
893.0 |
1116.2 |
1395.3 |
1758.0 |
2232.4 |
2511.5 |
2790.5 |
|
600 |
2250 |
- |
777.6 |
972.0 |
1244.2 |
1555.2 |
1944.0 |
2449.4 |
3110.4 |
3499.2 |
3888.0 |
|
700 |
2550 |
- |
1008.0 |
1260.0 |
1612.8 |
2016.0 |
2520.0 |
3175.2 |
4032.0 |
4536.2 |
5040.2 |
|
850 |
3100 |
- |
1454.4 |
1818.0 |
2327.0 |
2908.8 |
3636.0 |
4580.0 |
5817.6 |
6544.8 |
7272.0 |
