Introduction
A tubular Belt conveyor is an advanced material handling equipment specifically designed for the mining industry.It is a conveyor system that uses a belt formed into a tubular shape during operation. The belt is made of durable and flexible materials, usually reinforced rubber compounds, which can withstand the harsh conditions and heavy loads typical of mining operations. The tubular configuration allows the conveyor to enclose the transported material completely.
Application
Ore transportation
In open - pit mines, it transports ores like iron, copper, and gold from the mining area to processing plants or stockpiles over long distances and uneven terrains. In underground mines, it moves ores from mining levels to the surface through narrow tunnels and shafts.
Coal mining
In surface coal mines, it moves mined coal to preparation plants or loading areas, preventing coal dust spread and coal loss. In underground coal mines, it transports coal from working faces to shafts, reducing the risk of coal - dust - related explosions.
Aggregate and industrial mineral mining
In gravel and sand mines, it moves materials from extraction points to screening and washing areas or storage and loading zones. In industrial mineral mines (e.g., limestone, gypsum), it transports minerals from quarries to processing plants, ensuring a continuous and clean supply.
Tailings disposal
It transports mining waste (tailings) to disposal areas such as tailings dams or backfill sites, preventing environmental contamination and slurry leakage
Design
|

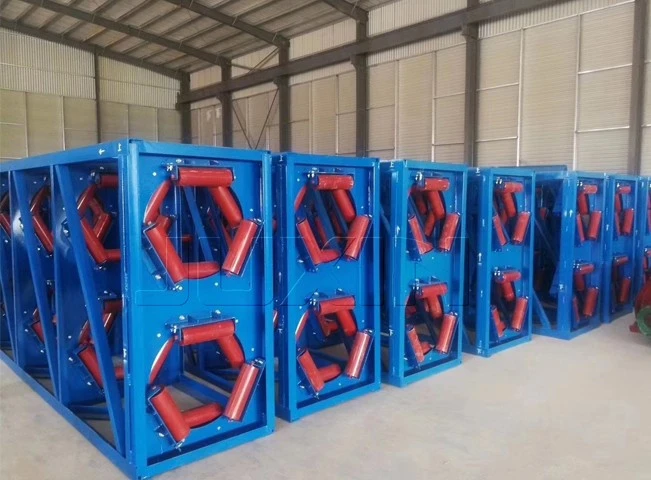

The tubular Belt conveyor is formed into a tube shape by the action of a series of rollers during operation. On both edges of the belt there is a special structural design, usually an edge section with a certain curvature. These rollers gradually guide the conveyor belt from a flat state to a tube shape as the belt passes around a specially arranged set of rollers. As the belt enters the tube-forming area, it first passes through a number of transition rollers, which are spaced and shaped so that the edges of the belt begin to curve upwards. Then, it passes through a set of inner rollers which surround the interior of the belt, supporting the belt and inducing it to fully form a tube. The arrangement and spacing of the inner rollers is critical to maintaining the stability of the tubular shape, and is generally designed based on the width of the belt, the weight of the material being conveyed, and other factors. |
Advantage
Tubular Belt
This is the main part of the conveyor and forms a closed loop. It is made of a flexible rubber or plastic material that is strong and durable.
Drive Unit
The drive unit is responsible for providing power to the tubular belt. It typically consists of an electric motor, gearbox, and other mechanical components.
Idler
Idlers are support rollers that are placed along the tubular belt to provide support and reduce friction.
Tensioning System
The tensioning system is used to maintain the appropriate tension in the tubular belt. It ensures that the belt remains tight and properly aligned, preventing any material spillage or belt damage.
Loading and Discharge Points
These are the areas where materials are loaded onto and discharged from the tubular belt conveyor. Loading points may include hoppers, chutes, or other devices that facilitate the transfer of materials onto the conveyor. Discharge points can be similar devices or simply an opening where the materials are released.
Support Structure
The support structure provides stability and strength to the tubular belt conveyor. It is typically made of steel or other sturdy materials and is designed to withstand the weight of the materials being transported.
Production
Intelligent Production Workshop
Hebei, May 1st , 2023, JUXIN is thrilled to announce the triumphant completion and utilization of its state-of-the-art 6,000 square meter intelligent production workshop.
Intelligent Idler Production Line
Hebei, June 1st, 2023,JUXIN announces the successful implementation of its state-of-the-art Intelligent Idler Production Line.
Certificate
Hot Tags: tubular belt conveyor, China tubular belt conveyor manufacturers, suppliers, factory, foldable conveyor belt, conventional belt, omnidirectional conveyor belt, Heavy Industrial Pipe Belt Conveyor, moving belt, micro conveyor belt
|
Tube Diameter (dp/mm) |
BW (b/mm) |
Tubular Belt Conveyor Belt Speed (m/s) Delivery Capacity |
|||||||||
|
0.8 |
1.0 |
1.25 |
1.6 |
2.0 |
2.5 |
3.15 |
4.0 |
4.5 |
5.0 |
||
|
100 |
430 |
17.0 |
21.2 |
26.5 |
33.9 |
- |
- |
- |
- |
- |
- |
|
150 |
600 |
38.0 |
47.5 |
59.4 |
76.0 |
95.0 |
118.8 |
- |
- |
- |
- |
|
200 |
750 |
66.5 |
83.1 |
103.9 |
133.0 |
166.2 |
207.8 |
- |
- |
- |
- |
|
250 |
1000 |
117.9 |
147.4 |
184.3 |
235.8 |
294.8 |
368.5 |
464.3 |
- |
- |
- |
|
300 |
1100 |
141.1 |
176.4 |
211.7 |
282.2 |
352.8 |
441.0 |
555.7 |
705.6 |
- |
- |
|
350 |
1300 |
- |
237.6 |
297.0 |
380.2 |
497.2 |
594.0 |
748.4 |
950.4 |
1069.2 |
1188.0 |
|
400 |
1600 |
- |
388.8 |
486.0 |
622.1 |
777.6 |
972.0 |
1224.7 |
1555.2 |
1749.6 |
1944.0 |
|
500 |
1900 |
- |
558.1 |
697.6 |
893.0 |
1116.2 |
1395.3 |
1758.0 |
2232.4 |
2511.5 |
2790.5 |
|
600 |
2250 |
- |
777.6 |
972.0 |
1244.2 |
1555.2 |
1944.0 |
2449.4 |
3110.4 |
3499.2 |
3888.0 |
|
700 |
2550 |
- |
1008.0 |
1260.0 |
1612.8 |
2016.0 |
2520.0 |
3175.2 |
4032.0 |
4536.2 |
5040.2 |
|
850 |
3100 |
- |
1454.4 |
1818.0 |
2327.0 |
2908.8 |
3636.0 |
4580.0 |
5817.6 |
6544.8 |
7272.0 |
