Hebei Juxin Conveyor Engineering Co., Ltd. is one of the most credible manufacturers and suppliers of self-aligning carrying idler in China. Be free to buy bulk self-aligning carrying idler in stock here and get free sample from our factory. Customized orders are welcome.
Introduction

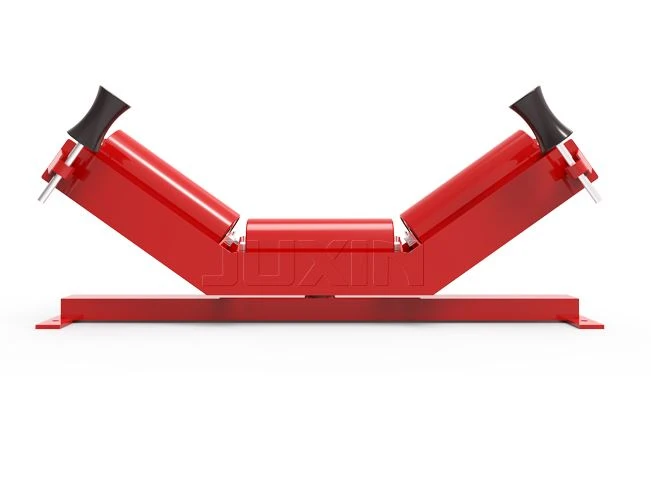

Self Aligning Carrying Idlers are specifically designed to address issues of conveyor belt misalignment. Self Aligning Troughing Carrying Idlers typically have a unique design that allows the idler to pivot or tilt in response to any deviation in the belt's alignment. Self-aligning idler can be used in tracking of both return and load-carrying side and find use in reversible conveyor belts, high-load conveyor belts slow moving conveyor belts.
Application
Mining
In the mining and ore processing industries, self-aligning troughing carrying idlers are widely used for ore transportation. Whether it is the ore lifting conveyor belt in underground mines or the ore conveying system in surface concentrators, they are indispensable. They can adapt to the weight, shape, and different conveying speeds of ores, ensuring the stability and safety of ore transportation.
Power
In the coal conveying belt conveyor system of thermal power plants, conveyor training idlers play an important role. During the process of transporting coal from the coal yard to the boiler room, these idlers can ensure the stable transportation of coal and automatically correct the deviation of the conveyor belt, preventing coal from spilling and improving the reliability of the entire coal conveying process.
Chemical
In the belt conveyors for transporting various granular or powdered chemical raw materials (such as fertilizer raw materials, plastic pellets, etc.) in chemical enterprises, self-aligning Return idler can ensure the orderly transportation of raw materials. Due to the special nature of chemical raw materials, higher requirements may be placed on the running stability of the conveyor belt, and self-aligning troughing carrying idlers just meet this need, contributing to the smooth progress of chemical production.
Design
|
The design principle of conveyor training idlers is to help maintain proper alignment of the conveyor belt by guiding it back to the center of the conveyor. This is achieved through the use of a slightly angled or tapered shape, which helps to steer the belt back to the center of the conveyor. The conveyor training idlers are typically installed on the return side of the conveyor belt, where they can help to guide the belt back to the center of the conveyor. They are typically designed with a series of rollers or discs that are mounted on a shaft, which is supported by bearings. The rollers or discs are typically spaced apart at regular intervals, which helps to distribute the load evenly across the width of the belt. The self-aligning idlers are typically made of high-quality materials, such as steel or high-density polyethylene, to ensure durability and long-lasting performance. They are typically mounted on shafts that are supported by bearings, which are typically sealed to prevent contamination from dust and other debris. |
Advantage
Self-aligning idlers are designed to automatically adjust themselves to maintain proper alignment of the conveyor belt. They typically consist of a central steel tube, which serves as the bearing surface for the conveyor belt. The tube is typically made of high-quality steel and is precision-machined to ensure a smooth surface finish.
The tube is then fitted with a series of idler rolls, which are typically made of high-density polyethylene or other durable materials. The idler rolls are mounted on shafts that are supported by bearings, which are typically sealed to prevent contamination from dust and other debris. The shafts are typically made of high-strength steel and are precision-machined to ensure a smooth surface finish.
The idler rolls are designed to rotate freely, allowing the conveyor belt to move smoothly and efficiently. The rolls are typically arranged in a straight configuration, which helps to support the conveyor belt and prevent it from sagging or stretching.
Self-aligning idlers typically have a unique design that allows them to pivot and adjust to changes in the conveyor belt's direction. This helps to ensure that the conveyor belt remains centered and does not become misaligned, which can cause damage to the belt and other components of the conveyor system.
Production
Intelligent Production Workshop
Hebei, May 1st , 2023, JUXIN is thrilled to announce the triumphant completion and utilization of its state-of-the-art 6,000 square meter intelligent production workshop.
Intelligent Idler Production Line
Hebei, June 1st, 2023,JUXIN announces the successful implementation of its state-of-the-art Intelligent Idler Production Line.
Certificate
Hot Tags: self-aligning carrying idler, China self-aligning carrying idler manufacturers, suppliers, factory, rubber disc impact conveyor idler, Conveyor Rubber Disc Return Rollers, belt conveyor troughing idlers, idler on excavator, suspended carrying idler, rear idler
|
|
||||||||||||||||||||
|
BELT WIDTH |
MODEL |
ROLLER |
BEARING No. |
D2 |
L2 |
A |
E |
H |
H1 |
H2 |
P |
Q |
d |
MASS (Kg) |
||||||
|
MODEL |
D1 |
L1 |
30 |
35 |
45 |
30 |
35 |
45 |
||||||||||||
|
500 |
-050-89-204 |
CR-89-204-200 |
89 |
200 |
204 |
76 |
120 |
740 |
800 |
220 |
135.5 |
273 |
300 |
328 |
170 |
130 |
M12 |
24.0 |
24.2 |
24.5 |
|
650 |
-065-89-204 |
CR-89-204-250 |
250 |
204 |
76 |
120 |
890 |
950 |
235 |
135.5 |
311 |
329 |
364 |
170 |
130 |
M12 |
27.2 |
27.6 |
28.0 |
|
|
-065-89-205 |
CR-89-205-250 |
205 |
28.9 |
29.3 |
29.7 |
|||||||||||||||
|
-065-108-204 |
CR-108-204-250 |
108 |
204 |
265 |
146 |
330 |
346 |
381 |
29.5 |
29.9 |
30.3 |
|||||||||
|
-065-108-205 |
CR-108-205-250 |
205 |
31.3 |
31.6 |
32.0 |
|||||||||||||||
|
-065-108-305 |
CR-108-305-250 |
305 |
32.8 |
33.1 |
33.5 |
|||||||||||||||
|
800 |
-080-89-204 |
CR-89-204-315 |
89 |
315 |
204 |
89 |
150 |
1090 |
1150 |
245 |
135.5 |
350 |
366 |
410 |
170 |
130 |
M12 |
36.1 |
36.4 |
36.7 |
|
-080-89-205 |
CR-89-205-315 |
205 |
37.9 |
38.2 |
38.5 |
|||||||||||||||
|
-080-108-204 |
CR-108-204-315 |
108 |
204 |
270 |
146 |
371 |
385 |
427 |
38.7 |
39.0 |
39.4 |
|||||||||
|
-080-108-205 |
CR-108-205-315 |
205 |
40.8 |
41.1 |
41.4 |
|||||||||||||||
|
-080-108-305 |
CR-108-305-315 |
305 |
42.2 |
42.5 |
42.8 |
|||||||||||||||
|
1000 |
-100-108-205 |
CR-108-205-380 |
108 |
380 |
205 |
89 |
150 |
1290 |
1350 |
300 |
159 |
417 |
437 |
487 |
220 |
170 |
M16 |
56.0 |
56.4 |
56.8 |
|
-100-108-305 |
CR-108-305-380 |
305 |
57.4 |
57.9 |
58.3 |
|||||||||||||||
|
-100-108-206 |
CR-108-206-380 |
206 |
59.5 |
59.9 |
60.4 |
|||||||||||||||
|
-100-108-306 |
CR-108-306-380 |
306 |
60.7 |
61.1 |
61.6 |
|||||||||||||||
|
-100-133-205 |
CR-133-205-380 |
133 |
205 |
325 |
173.5 |
442 |
462 |
515 |
59.8 |
60.2 |
60.6 |
|||||||||
|
-100-133-305 |
CR-133-305-380 |
305 |
60.7 |
61.1 |
61.6 |
|||||||||||||||
|
-100-133-206 |
CR-133-206-380 |
206 |
62.8 |
63.2 |
63.6 |
|||||||||||||||
|
-100-133-306 |
CR-133-306-380 |
306 |
64.0 |
64.4 |
64.8 |
|||||||||||||||
|
1200 |
-120-108-205 |
CR-108-205-465 |
108 |
465 |
205 |
89 |
150 |
1540 |
1600 |
335 |
176 |
476 |
503 |
564 |
260 |
200 |
M16 |
68.3 |
68.7 |
69.6 |
|
-120-108-305 |
CR-108-305-465 |
305 |
69.7 |
70.1 |
71.1 |
|||||||||||||||
|
-120-108-206 |
CR-108-206-465 |
206 |
72.2 |
72.6 |
73.6 |
|||||||||||||||
|
-120-108-306 |
CR-108-306-465 |
306 |
73.4 |
73.8 |
74.8 |
|||||||||||||||
|
-120-133-205 |
CR-133-205-465 |
133 |
205 |
360 |
190.5 |
501 |
528 |
592 |
72.6 |
73.0 |
74.0 |
|||||||||
|
-120-133-305 |
CR-133-305-465 |
305 |
73.5 |
74.0 |
74.9 |
|||||||||||||||
|
-120-133-206 |
CR-133-206-465 |
206 |
76.1 |
76.5 |
77.5 |
|||||||||||||||
|
-120-133-306 |
CR-133-306-465 |
306 |
77.3 |
77.7 |
78.7 |
|||||||||||||||
|
-120-159-205 |
CR-159-205-465 |
159 |
205 |
390 |
207.5 |
529 |
557 |
618 |
79.5 |
79.9 |
80.8 |
|||||||||
|
-120-159-305 |
CR-159-305-465 |
305 |
80.5 |
80.9 |
81.8 |
|||||||||||||||
|
-120-159-206 |
CR-159-206-465 |
206 |
83.0 |
83.4 |
84.4 |
|||||||||||||||
|
-120-159-306 |
CR-159-306-465 |
306 |
84.2 |
84.6 |
85.6 |
|||||||||||||||
|
1400 |
-140-108-205 |
CR-108-205-530 |
108 |
530 |
205 |
108 |
180 |
1740 |
1800 |
350 |
184 |
516 |
548 |
618 |
280 |
220 |
M16 |
131.8 |
163.6 |
165.4 |
|
-140-108-305 |
CR-108-305-530 |
305 |
133.2 |
165.0 |
166.8 |
|||||||||||||||
|
-140-108-206 |
CR-108-206-530 |
206 |
136.1 |
167.9 |
169.7 |
|||||||||||||||
|
-140-108-306 |
CR-108-306-530 |
306 |
137.3 |
169.1 |
170.9 |
|||||||||||||||
|
-140-133-205 |
CR-133-205-530 |
133 |
205 |
380 |
198.5 |
541 |
573 |
646 |
136.6 |
168.4 |
170.2 |
|||||||||
|
-140-133-305 |
CR-133-305-530 |
305 |
137.5 |
169.3 |
171.1 |
|||||||||||||||
|
-140-133-206 |
CR-133-206-530 |
206 |
140.4 |
172.2 |
174.0 |
|||||||||||||||
|
-140-133-306 |
CR-133-306-530 |
306 |
141.6 |
173.4 |
175.2 |
|||||||||||||||
|
-140-159-205 |
CR-159-205-530 |
159 |
205 |
410 |
215.5 |
570 |
603 |
672 |
144.3 |
176.1 |
177.9 |
|||||||||
|
-140-159-305 |
CR-159-305-530 |
305 |
145.3 |
177.1 |
178.9 |
|||||||||||||||
|
-140-159-206 |
CR-159-206-530 |
206 |
148.1 |
180.0 |
181.7 |
|||||||||||||||
|
-140-159-306 |
CR-159-306-530 |
306 |
149.3 |
181.2 |
182.9 |
|||||||||||||||
