Hebei Juxin Conveyor Engineering Co., Ltd. is one of the most credible manufacturers and suppliers of impact idler roller in China. Be free to buy bulk impact idler roller in stock here and get free sample from our factory. Customized orders are welcome.
Introduction

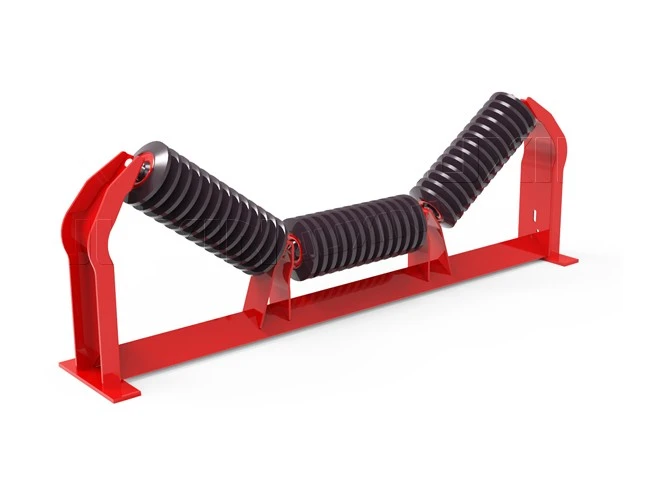

Impact idler roller for Belt Conveyor is a type of idler rollers used in belt conveyors to support the conveyor belt and absorb impact from materials being loaded onto the belt. Impact Idlers for Belt Conveyor are designed with a rubber or urethane disc located at the center of the roller, which helps to cushion the impact of heavy materials and prevent damage to the belt. Impact idler set are typically used in areas where the material being conveyed is heavy or abrasive, such as in mining, quarrying, and construction applications. They are an important component of belt conveyor systems, helping to ensure safe and efficient material handling.
Application
Impact idler roller for belt conveyor are typically used in areas where the material being conveyed is heavy or abrasive, such as in mining, quarrying, and construction applications. Impact Idlers for Belt Conveyor are commonly used in the loading zones of belt conveyors, where heavy materials are loaded onto the conveyor belt. The impact idlers help to absorb the impact of the materials and prevent damage to the belt, as well as reduce spillage and dust emissions. Rubber disc impact conveyor idlers are also used in areas where the conveyor belt is subjected to high levels of stress, such as in transfer points and areas where the belt changes direction.
Design
|
Design principle The design principle of Impact idler roller for belt conveyor is to provide a cushioning effect to the conveyor belt and reduce the impact of heavy materials on the belt. This is achieved through the use of a rubber or urethane disc located at the center of the roller, which absorbs the impact of the material and prevents damage to the belt. Impact idler The design of Impact idler set also takes into consideration the weight and size of the material being conveyed, as well as the speed of the conveyor belt. The roller shell is typically designed to be larger and heavier than standard idlers, in order to provide additional support and stability to the conveyor belt. Bearing bearings used to support the roller shell are typically designed to be more durable and resistant to wear and tear, in order to withstand the high levels of stress and impact that are common in heavy-duty applications. |
Advantage
Roller shell
The roller shell is designed with a rubber or urethane disc located at the center of the roller, which helps to cushion the impact of heavy materials and prevent damage to the belt. The rubber or urethane disc is typically made of high-quality materials that are resistant to wear and tear, and can withstand the impact of heavy materials without degrading over time.The roller shell is typically made of high-strength steel or aluminum, which provides excellent durability and resistance to corrosion.
Shaft
The shaft is also made of high-strength steel or aluminum, and is designed to provide excellent support for the roller shell. The bearings used to support the roller shell are typically sealed and lubricated, which helps to prevent contamination and extend the life of the bearings.
Production
Intelligent Production Workshop
Hebei, May 1st , 2023, JUXIN is thrilled to announce the triumphant completion and utilization of its state-of-the-art 6,000 square meter intelligent production workshop.
Intelligent Idler Production Line
Hebei, June 1st, 2023,JUXIN announces the successful implementation of its state-of-the-art Intelligent Idler Production Line.
