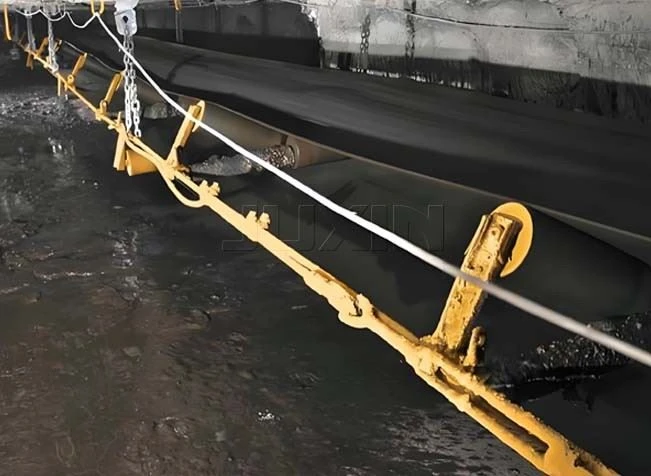

Mining Conveyors

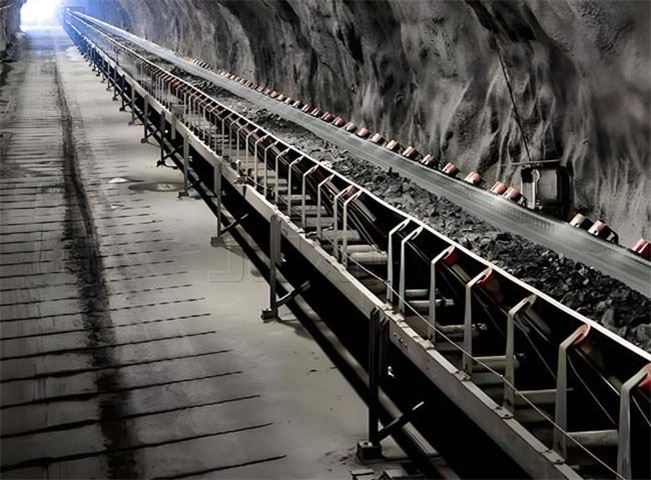

Ore and hard rock abrade belt covers fast, and long mine-to-mill hauls add sustained tension on top of that wear. Our Mining Conveyors fit nylon NN construction at impact-prone transfer points and ST steel-cord cores up to ST5000 N/mm on long runs, so Conveyors For Mining hold up under both abrasion and tension without becoming the line's weak point.

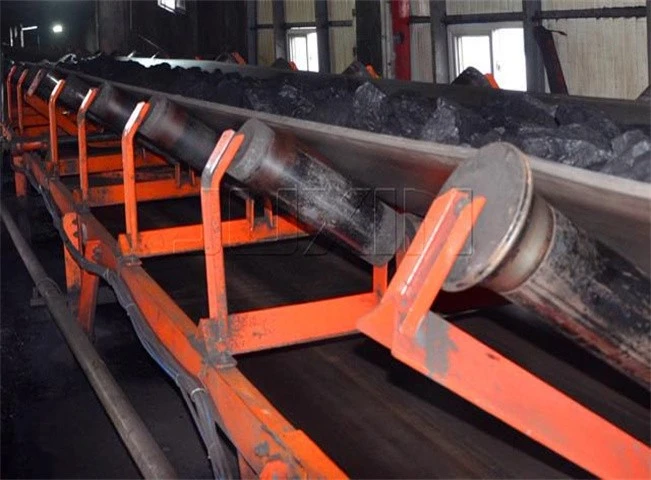

Idlers are the most numerous wear part on any line, and across kilometers of continuous haulage their resistance and sealing quality decide both energy cost and maintenance frequency. Our Mining Conveyors specify rotation resistance of 1.8 to 2.2N against a 3.0N ceiling, 500-hour sealing, and 30,000 to 50,000-hour design life, the standard anyone evaluating Mining Conveyors For Sale should insist on over the generic 20,000-hour baseline.

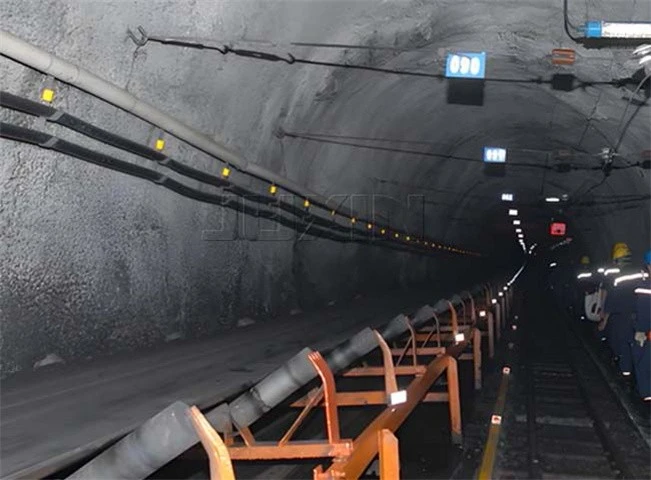

Underground drives face ignition risk and runaway risk on grade at the same time. Our Mining Conveyors specify explosion-proof motors and hard-tooth-face reducers as default, pair backstops above 12 degrees with electro-hydraulic brakes on every decline, and use VFD or fluid-coupling multi-drive layouts, so Conveyors For Mining stay safe and efficient on grade.

An undersized or unbalanced pulley turns into belt vibration and eventual core fatigue at the bend. Our Mining Conveyors use Q235 or cast-welded shells with flaw-detected welding, dynamic balancing on heavy units, radial runout held to 0.75mm on high-tension pulleys, and diameter matched to the belt's minimum bend radius, protecting Mining Conveyors' belt cores instead of stressing them.

A frame out of true wanders regardless of belt quality, and transfer points absorb the worst impact on the whole structure. Our Mining Conveyors hold idler bracket trough angle within 1 degree and line chutes and skirtboards in wear plate at every transfer point, backed by buffer beds, so Conveyors For Mining stay aligned where they fail first.

A reliable underground line needs to detect faults, catch fire risk, and tie control architecture together all at once. Our Mining Conveyors run two-stage misalignment switches, slip and tear detection, temperature and smoke sensors with explosion-proof devices, and PLC or VFD control specified from day one, which is what separates serious Mining Conveyors For Sale from a line that just moves material.
