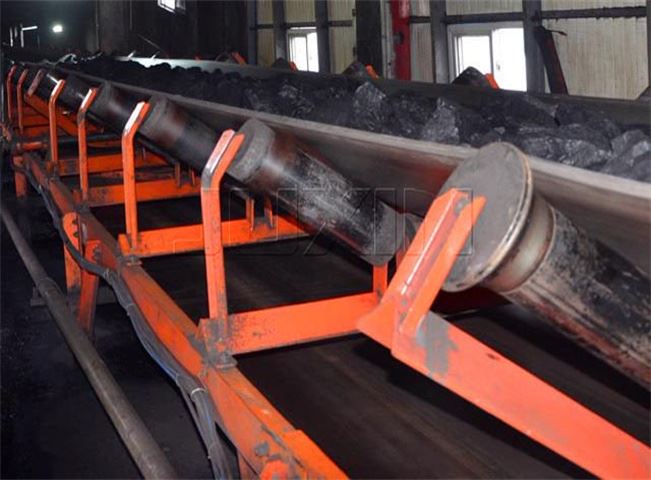

Coal Belt Conveyor

Coal handling asks a belt to resist three things at once: ignition risk, abrasive lump impact, and sustained tension over distance. Our Coal Belt Conveyor uses MT914-graded PVC/PVG flame-retardant cores where combustion risk applies, nylon NN construction at impact-prone points, and ST steel-cord cores up to ST5000 N/mm on long runs, so a Coal Belt Conveyors Manufacturer in China matches core type to the actual hazard instead of selling one belt for everything.

Idlers are the most numerous wear part on any coal line, and their resistance and sealing quality decide both the energy bill and how often maintenance interrupts production. Our Coal Belt Conveyor specifies rotation resistance of 1.8 to 2.2N against a 3.0N ceiling, 500-hour water-spray sealing, and 30,000 to 50,000-hour design life.

A coal line's drive has to manage ignition risk, incline safety, and power balance across multiple sections simultaneously. Our Coal Belt Conveyor specifies explosion-proof motors and hard-tooth-face reducers as default, backstops above 12 degrees with electro-hydraulic brakes on every decline, and VFD or fluid-coupling multi-drive layouts, so a Coal Belt Conveyors Manufacturer in China balances power instead of overloading one motor.

An undersized, unbalanced, or poorly welded pulley turns into belt vibration and core fatigue long before anyone traces the fault back to the pulley itself. Our Coal Belt Conveyor uses Q235 or cast-welded shells with flaw-detected welding, dynamic balancing on heavy units, radial runout held to 0.75mm on high-tension pulleys, and diameter matched to the belt's minimum bend radius, so a Belt Conveyor For Coal protects its core instead of stressing it.

A frame out of alignment wanders regardless of belt quality, and transfer points absorb the hardest abuse on the whole structure. Our Coal Belt Conveyor holds idler bracket trough angle within 1 degree, lines chutes and skirtboards in wear plate at every transfer point, and backs that with buffer beds, so a Coal Belt Conveyors Manufacturer in China keeps the structure aligned where coal hits hardest.

Fire Detection and Full-Line Interlocking: Coal's fire risk doesn't announce itself until a bearing is already smoking, and a line without full detection can't catch that in time. Our Coal Belt Conveyor pairs temperature and smoke sensors with explosion-proof devices as mandatory equipment, runs two-stage misalignment and tear detection.
