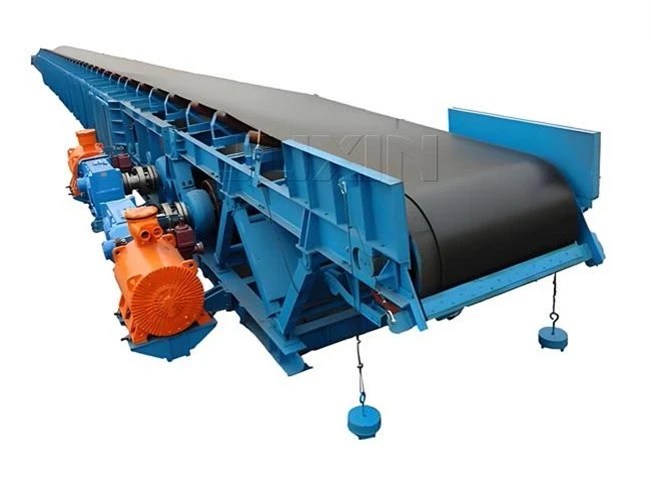

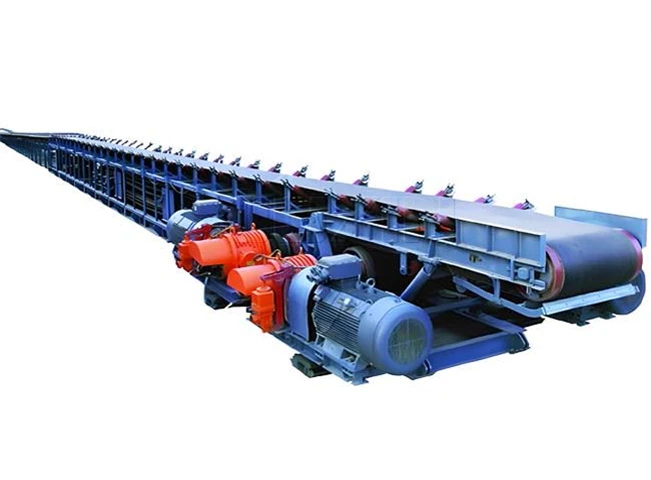

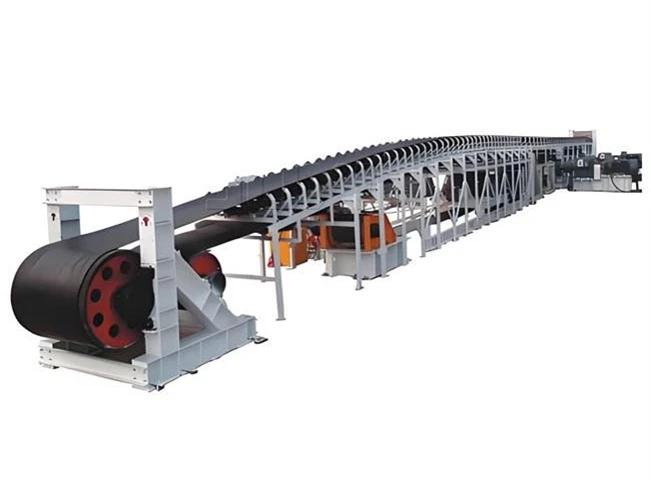

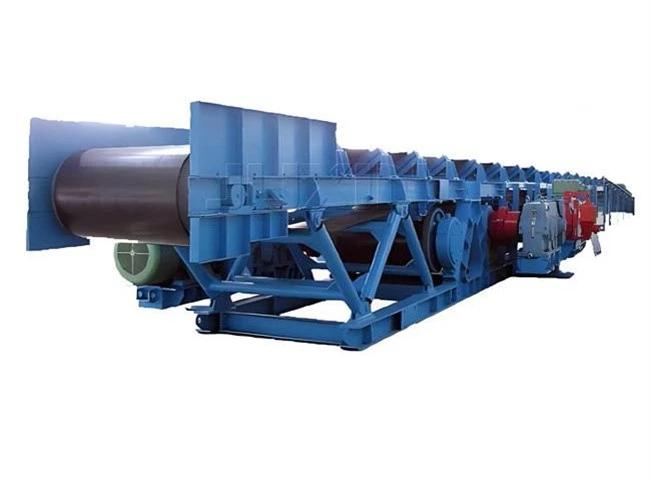

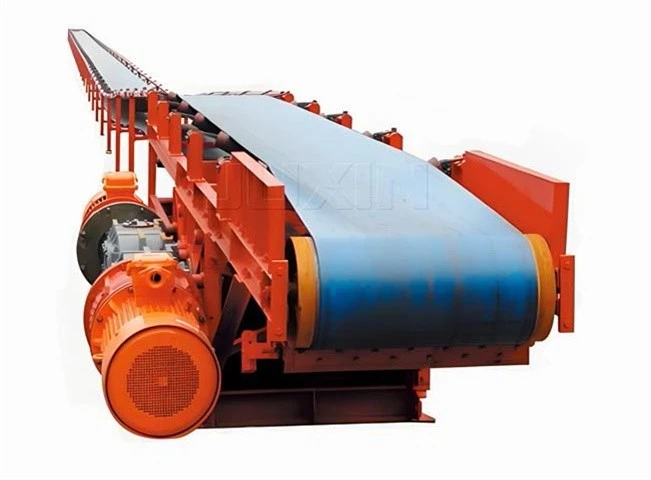

Mine Conveyor

Ore and hard rock lumps chew through generic belt covers fast, and a long haulage run adds sustained tension on top of that abrasion. Our Mine Conveyor fits nylon NN construction at impact-prone transfer points for tear resistance, and ST steel-cord cores up to ST5000 N/mm on long mainline runs, so a Mine Belt Conveyor holds up under both abrasive wear and constant tension without becoming the weak link in the line.

Idlers are the most numerous wear part on any line, and across kilometers of continuous underground haulage, their rotation resistance and sealing quality decide both energy cost and maintenance frequency. Our Mine Conveyor specifies rotation resistance of 1.8 to 2.2N against a 3.0N national ceiling, 500-hour water-spray sealing, and 30,000 to 50,000-hour design life, so a Mine Conveyor Manufacturer in China delivers idlers that outlast the generic 20,000-hour standard.

Underground drives face two separate demands at once: ignition risk from sparks and heat, and runaway risk on a graded haulage way. Our Mine Conveyor specifies explosion-proof motors and hard-tooth-face reducers as the default, pairs backstops above 12 degrees with electro-hydraulic brakes on every decline, and uses VFD or fluid-coupling multi-drive layouts to balance power, so a Mine Belt Conveyor stays safe and efficient on grade.

A pulley that's undersized for its belt, out of round, or poorly welded turns into belt vibration, premature bearing wear, and eventual core fatigue at the bend. Our Mine Conveyor uses Q235 or cast-welded shells joined by flaw-detected mixed-gas shielded arc welding, dynamically balances heavy units, holds radial runout to 0.75mm on high-tension pulleys, and matches diameter to the belt's minimum bend radius, so a Mine Conveyor Manufacturer in China protects the belt core instead of fatiguing it.

Aligned Structure That Survives Underground Impact: A frame out of true wanders no matter how good the belt is, and transfer points absorb the worst impact on the entire structure. Our Mine Conveyor holds idler bracket trough angle to within 1 degree, lines chutes and skirtboards in wear plate at every transfer point, and backs that with buffer beds where material drops hardest, so a Mine Belt Conveyor stays aligned and protected at the points that fail first.

Full-Line Detection, Fire Protection, and Interlocking: A reliable underground line needs to detect belt faults, catch fire risk early, and tie control decisions to the right architecture, all at once. Our Mine Conveyor runs two-stage misalignment switches, slip and tear detection, temperature and smoke sensors paired with explosion-proof devices, and PLC-interlocked or VFD-based control specified from day one, so a Mine Conveyor Manufacturer in China builds a line that protects itself end to end.
